[컴퓨터네트워크] 2. Application Layer (7)

Socket Programming with UDP and TCP

Socket Programming

Socket Programming

--> Goal: Communicate using socket.

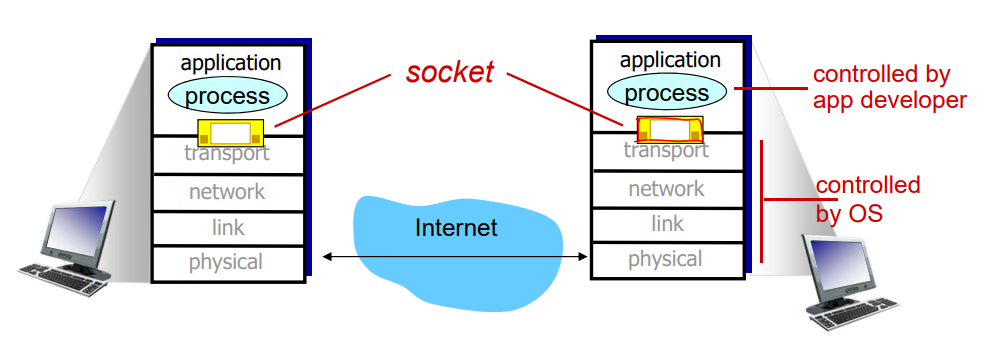

• Socket: Door between application process and end-end-transport protocol.



▶ Two socket types for two transport services:

• UDP: unreliable datagram
• TCP: reliable, byte stream-oriented



▷ Application Example:

1. Client: reads a line of characters (data) from its keyboard, and sends data to server. (요청)
2. Server: receives the data and converts characters to uppercase, and sends modified data to client. (응답)
3. Client: receives modified data, and displays line on its screen.





Socket Programming with UDP

▶ UDP: "no connection" between client and server.

• Handshaking (x)
• Server (sender): 각각의 packet에 대한 IP 주소, Port 번호를 붙인다.
• Client (receiver): 받은 packet에서 sender의 IP 주소와 Port 번호를 추출한다.

▶ UDP: transmitted data may be lost, received out-of-order.



--> Application viewpoint

: UDP provides unreliable transfer of groups of datagrams between client and server.
