Example: Intrinsity FastMATH

Example: Intrinsity FastMATH

  • Large cache: 1 block = 64 bytes

Large cache의 경우, block의 크기는 크지만, 이를 다시 CPU로 보낼 때는 1 word(= 4 bytes) 단위로 보내야 한다. 따라서 64 bytes를 4 bytes씩 16개로 쪼개놓는 것이다.




Main Memory Supporting Caches

Main Memory Supporting Caches

▷ 1 block = 4 word의 경우 miss penalty:

  • 1: address transfer
  • 4*15: DRAM access (DRAM은 1 word씩만 접근 가능하기 때문에 4를 곱해야 한다.)
  • 4*1: data transfer (DRAM은 1 word씩만 접근 가능하기 때문에 4를 곱해야 한다.



Designing the Memory to Support Caches

Designing the Memory to Support Caches

a. One-word wide memory organization

: 캐시는 1 block이 4 words인데, 메모리는 1 word씩만 접근이 가능하다.



b. Wider memory organization

: 메모리에 4 words씩 접근 가능하기 때문에, DRAM access, data transfer 모두 4배 빨라진다.



c. Interleaved memory organization: "bank"

: 메모리에 4 words씩 병렬적으로 접근할 수 있지만, Bus가 늘어나지 않았기 때문에 data transfer은 1 words씩 해야 한다.



DRAM Generations

DRAM Generations

: CPU가 DRAM보다 훨씬 빨라졌다. 즉, CPU 입장에서는 DRAM이 오히려 느려진 것이다. 따라서 성능을 향상시키기 위해서는 DRAM에의 접근을 최소화해야 한다.



Byte Addressable Memory
  • CPU: 4 bytes씩 접근 가능
  • Cache: 1 block씩 접근 가능
  • Memory: 4 bytes씩 접근 가능



Measuring and Improving Cache Performance

▷ Cache miss rate를 줄여서, main memory에의 접근을 줄인다.

▷ Cache miss가 발생해도, main memory에 접근하지 않도록 한다.

  • Multilevel caching: 캐시가 많기 때문에, 상위 레벨 캐시에서 miss가 발생해도, 아직은 메모리가 아니다!



Cache Performance

▶ CPU time = (CPU execution clock cycle + Memory stall clock cycles) * Clock cycle time

  • Read-stall: lw -- 메모리에서 데이터를 읽어 와서 레지스터로 load word.
  • Write-stall: sw -- 메모리에 데이터를 store word.

Memory stall clock cycles: Read-stall, Write-stall



Memory Stall Cycles

Memory Stall Cycles



Cache Performance Example

Cache Performance Example

Cache miss는 instruction memory의 i-cache, data memory의 d-cache에서 발생할 수 있다.

i-cache miss 즉, i-cache에 instruction 데이터가 들어있지 않은 경우를 2%, d-cache miss 즉, d-cache에 instruction 데이터가 들어있지 않은 경우를 4%라고 가정한다.

  • Instruction miss cycles: I*0.02*100 = 2*I
  • Data miss cycles: I*0.36*0.04*100 = 1.44*I

- i-cache miss의 경우, (I 즉, instruction 접근 횟수 x  i-cache miss가 발생할 확률 x miss penalty) 로 구한다.

- d-cache miss의 경우, (I 즉, instruction 접근 횟수 x 메모리 접근 instruction 발생 횟수 x d-cache miss가 발생할 확률 x miss penalty) 로 구한다.



--> Total number of memory-stall cycles = 3.44*I

--> Total CPI = 2(이상적인 CPI) + 3.44 = 5.44

  • 메모리 stall이 아예 없을 때의 이상적인 CPI(2)에 비해 메모리 접근 시간때문에 2.72배가 느려져, CPI가 5.44가 되었다.

**CPI: Clock cycle Per Instruction




Fully Associative Cache

: Memory block can be placed in any location in the cache.

--> All entries must be searched.



Set Associative Cache

: There are fixed number of locations where each block can be placed.



Associative Cache Example

Associative Cache Example

예) Entry가 8개인 상황:

  • Direct mapped cache: Just modulo 8 연산 --> 하나의 index 당 공간이 하나이다.
  • 2-way set associative: 하나의 index 당 공간이 두 개이다. (modulo 8/2 즉, modulo 4 연산)
  • Fully associative: Index가 없다. 모든 공간에 어떤 tag든지 다 들어갈 수 있다.



Position of a Memory Block

Position of a Memory Block



Example: Misses and Associativity in Cache
1) Direct Mapped Cache

1) Direct Mapped Cache



2) 2-Way Set-Associative Cache

2) 2-Way Set-Associative Cache



3) Fully Associative Cache

3) Fully Associative Cache

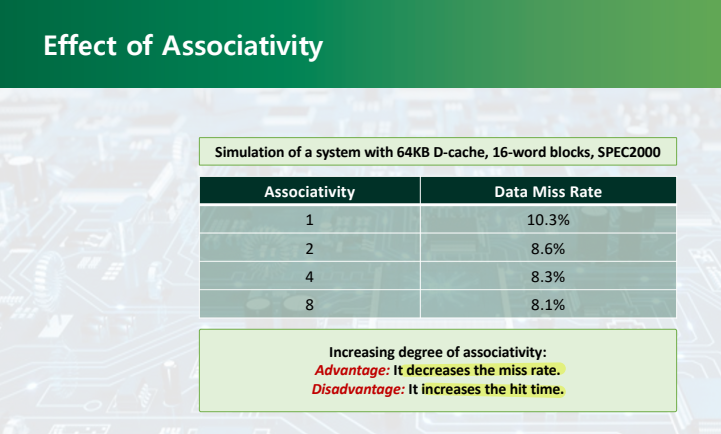

Effect of Associativity

Effect of Associativity



Three Portions of an Address for Set Associative

Three Portions of an Address for Set Associative

  • Associativity가 늘어나면, 하나의 Index 당 sub-room이 많아지기 때문에, index 자체는 줄어든다.
    --> Index bit 수가 감소하고, 따라서 Tag bit 수가 증가한다.



4-Way Set Associative Cache

4-Way Set Associative Cache

  • 4-way set associative의 경우, 하나의 index 당 sub-room이 4개이다.

--> 특정 index, 즉 set에 접근하고 나서, 4번의 search를 통해, 내가 원하는 Tag가 cache 안에 들어 있는지 확인해야 한다.











출처: 이화여자대학교 윤명국교수님 컴퓨터구조
