[컴퓨터구조] 2. Instructions: Language of the Computer (5)

Computing Integer Division

// C code

int a = 12;
int b = 4;
int result = 0;

main(){
  while (a >= b){
    a = a - b;
    result++;
  }
}

// MIPS Assembly Language

      .data
x:    .word 12
y:    .word 4
res:  .word 0

      .global main
      .text
main:     la   $s0, x        // load_address x in $s0 (memory --> register)
          lw   $s1, 0($s0)   // load_word $s0 in $s1
          lw   $s2, 4($s0)   // load_word ($s0 + 4) in $s2
          lw   $s3, 8($s0)   // load_word ($s0 + 8) in $s3
while:    bgt  $s2, $s1, endwhile   // if($s2 > $s1), endwhile
          sub  $s1, $s1, $s2             // x = x - y;
          addi $s3, $s3, 1          // result++
          j    while                // jump to while:
endwhile:                           // 끝내기
          la   $s0, x
          sw   $s1, 0($s0)          // register --> memory
          sw   $s2, 4($s0)
          sw   $s3, 8($s0)

Q. la   $s0, x

.text의 가장 처음에 x의 주소를 $s0에 저장했고, $s0는 중간에 register들의 연산에서 값이 변하지 않은 것 같은데, sw를 하기 전에 왜 다시 주소를 $s0에 저장해야 하나요?

A. $s0가 사용되지 않았고 바뀐 것이 없어서,  la   $s0, x 를 하지 않아도 상관없습니다. 그냥 수업 상 갑자기 $s0가 등장하면 상기하기 어려울 수 있어서 그렇게 쓴 것뿐입니다.



Simple One

// C code

int a = 12;
int b = 4;
int result = 0;

main(){
  while(a >= b) {
    a = a - b;
    result++;
  }
  printf("%d%d%d, a, b, res);
}

// MIPS Assembly Language

# $t0 = a
# $t1 = b
# $tr = res
         .text
main:
          li   $t0, 12
          li   $t1, 4
          li   $t2, 0
while:    bgt  $t1, $t0, endwhile   # if($t1 > $t0), endwhile
          sub  $t0, $t0, $t1        # a = a - b
          addi $t3, $t3, 1          # res++;
          j    while
endwhile:
          move $a0, $t0             # move from $t0 to $a0
          li   $v0, 1
          syscall                   # syscall 1: print_int from $a0
          move $a0, $t1
          li   $v0, 1
          syscall
          move $a0, $t2
          li   $v0, 1
          syscall

          li   $v0, 10
          syscall                   # syscall 10: Exit



---

More Conditional Operations

: Set result to 1 if a condition is true. Otherwise, set to 0.

slt   rd, rs, rt         // if(rs < rt), rd = 1; else, rd = 0;
slti  rt, rs, constant   // if(rs < constant), rt = 1; else, rt = 0;



▶ Use in combination with beq, bne

slt  $t0, $s1, $s2   // if ($s1 < $s2), $t0 = 1; else, $t0 = 0;
bne  $t0, $zero, L   // if ($t0 != 0), branch to L

// case 1) $s1 < $s2,  $t0 = 1, L   // if ($s1 < $s2), branch to L
// case 2) $s1 >= $s2, $t0 = 0

// bgt로 바꾸기

bgt  $s2, $s1, L   // if($s2 > $s1), branch to L



Branch Instruction Design

▶ Why not blt, bge, etc?

: Hardware for <, <=, ... slower than =, !=.

• Combining with branch involves more work per instruction, requiring a slower clock.



Jump Instructions

j    L     // jump to label L
jr   src1  // jump to location src1

jal  L     // jump to label L, and store the address of the next instruction in $ra
jalr src1  // jump to location src1, and stroe the address of the next instruction in $ra



Comparision Instructions

• native instruction: slt

// slt

slt  rd, rs, rt    // if(rs < rt), rd = 1; else, rd = 0;

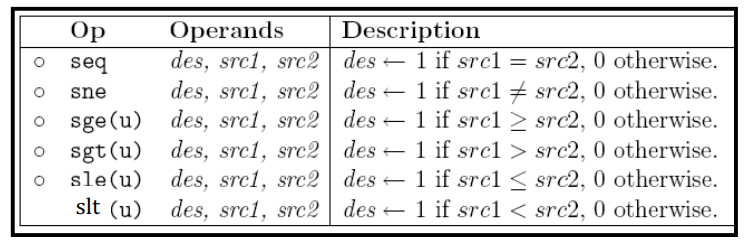

Comparision Instructions

---



Signed vs. Unsigned

• Signed comparison: slt, slti
• Unsigned comparision: sltu, sltui

--> Signed/Unsigned: instruction에 의해 결정된다. (레지스터 값에 의해 결정x)

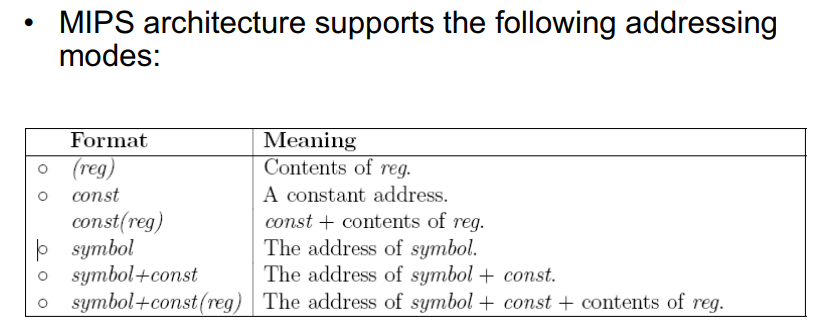

The Address Mode

The Address Mode



---

Subroutine (Procedure, Function, Method)

: Logical division of the code that may be regarded as a self-contained operation.

• A subroutine might be executed several times with different data as the program executes.



Callers and Callees

- Subroutine call: Main routine이 Subroutine을 call한다.

• Caller: Main routine
• Callee: Subroutine

--> A return from a subroutine is when a subroutine passes control back to its Caller.



Procedure Calling

1. Place parameters in registers.
2. Transfer control to procedure.
3. Acquire storage for procedure.
4. Perform procedure's operations.
5. Place result in register for caller.
6. Return to place of call. (by. $ra)

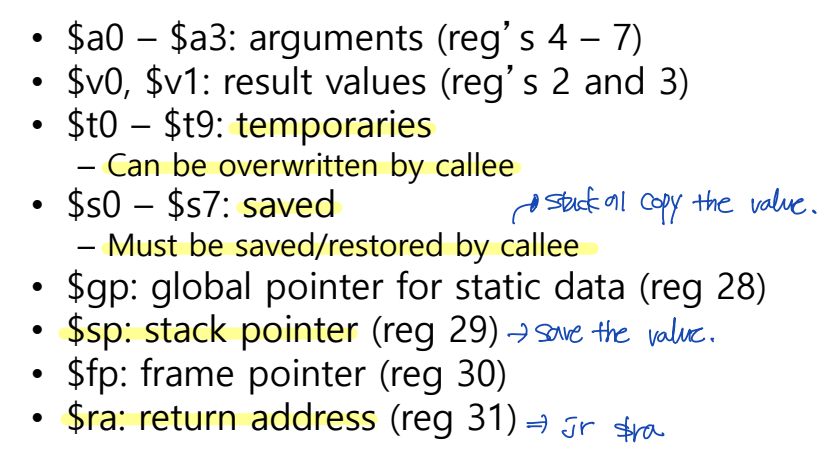

Register Usage

Register Usage



Procedure Call Instructions

▶ Procedure call: jal (jump and link)

jal  ProcedureLabel

// Address of following instruction put in $ra
// Jumps to target address(ProcedureLabel)



▶ Procedure return: jr (jump register)

jr   $ra

// PC = $ra(PC + 4)

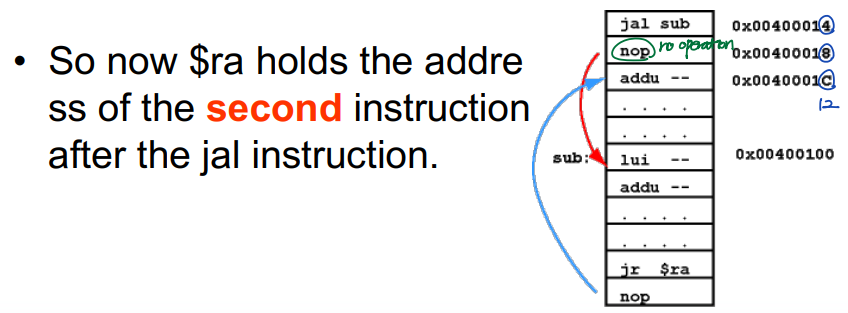

The jal Instruction

jal   ProcedureLabel

1. $ra ($31): Provides the hardware support necessary to elegantly implement subroutines.
2. Jumps to target address (ProcedureLabel).

jal   sub

// $ra <- PC + 4
// $ra <- address 8 bytes away from jal (PC + 4: 자동, PC + 4: 수동 --> PC + 8)
// PC  <- sub
// load the PC with the subroutine entry point



---

SBY 4-2

1. Can you convert the following MIPS code to the MIPS code with beq and bne?

bgt  $s1, $s2, my_label

: if ($s1 > $s2), branch to my_label



• beq: branch if equal
• bne: branch if not equal
• slt  rd, rs, rt: if(rs<rt), rd = 1; else, rd = 0;

slt    $t0, $s2, $s1         // if($s2 < $s1), $t0 = 1; else, $t0 = 0;
bnq  $t0, $zero, my_label   // if($t0 != 0), branch to my_label

// if ($t0 == 1) 즉, ($s2 < $s1), branch to my_label
